Nova 82

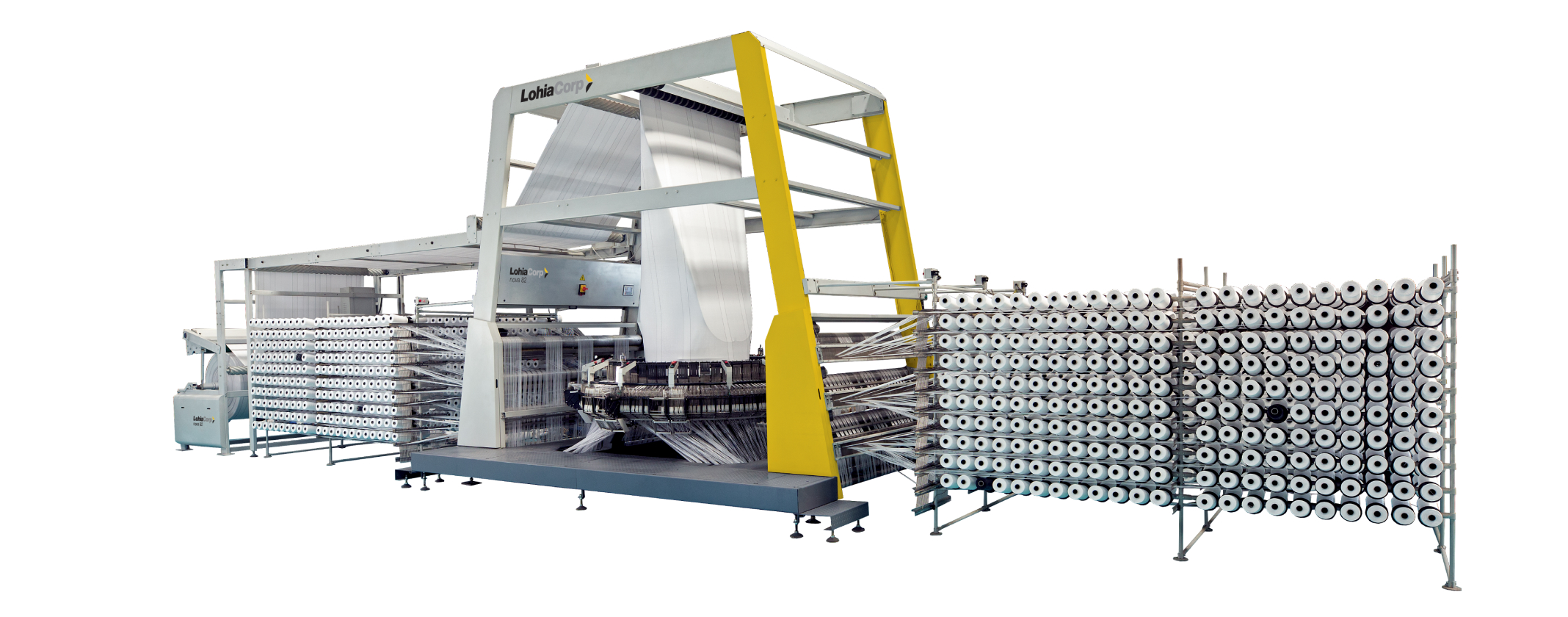

The Nova 82 is a next-generation high-speed 8 shuttle circular loom, specially designed to cater to the diverse requirements of both lightweight and heavy-duty fabric production. It is ideally suited for a range of applications, including jumbo bags (FIBCs), geotextiles, heavy-duty tarpaulins, and agrotextiles. The loom is available in two specialized configurations for optimal performance: The Light fabric Version is designed for producing lighter fabrics commonly used in tarpaulins, lumber covers, agrotextiles, and jumbo bags, ensuring high productivity and fabric consistency. The Heavy Fabric Version focuses on heavier fabrics, primarily used in corner loop jumbo bags (FIBCs) and geotextile applications, offering durability and reliability for demanding industrial needs. This flexibility makes the Nova 82 an efficient solution for a wide range of technical textile applications.

Lightweight liners to heavy-duty tarps – weave It all

Optimised performance for diverse fabrics

Engineered for both light and heavy materials

Optimized for jumbo bags and technical textiles

Robust design ensuring durability and efficiency

Power, precision, performance – woven to perfection

Specifications

Nova 82
Working width - double flat

150 to 200 cm
No. of shuttles/loom

8
Weft insertion rate (max.)

720 ppm*
Warp / Weft Core Internal Diameter

35 mm**
Wrap/weft core length

218 mm**
Warp bobbin diameter (max.)

130 mm**
Weft bobbin diameter (max.)

115 mm
No. of tapes (LF/LH)

1568/2240
Fabric roll diameter (max.)

1200 mm
Dimensions (L X W X H)

LF - 13.7 x 3.8 x 4.7 m
LH - 16.1 x 3.8 x 4.8 m
Centre to centre (LH/LF)

3.8 m

LF version for light fabrics and HF version for heavy fabrics.
* Actual processing speed depends upon reed version, fabric width, construction, tape specifications, quality of tapes and winding.
** Special versions on request.
Specifications are subject to change without prior notice, due to continuous developments. These are indicative and not binding. Extreme values indicated are not achievable simultaneously.
The pictures may show LF or HF version or optional equipments that are not a part of the standard supply.
For details, refer to the quotation.
