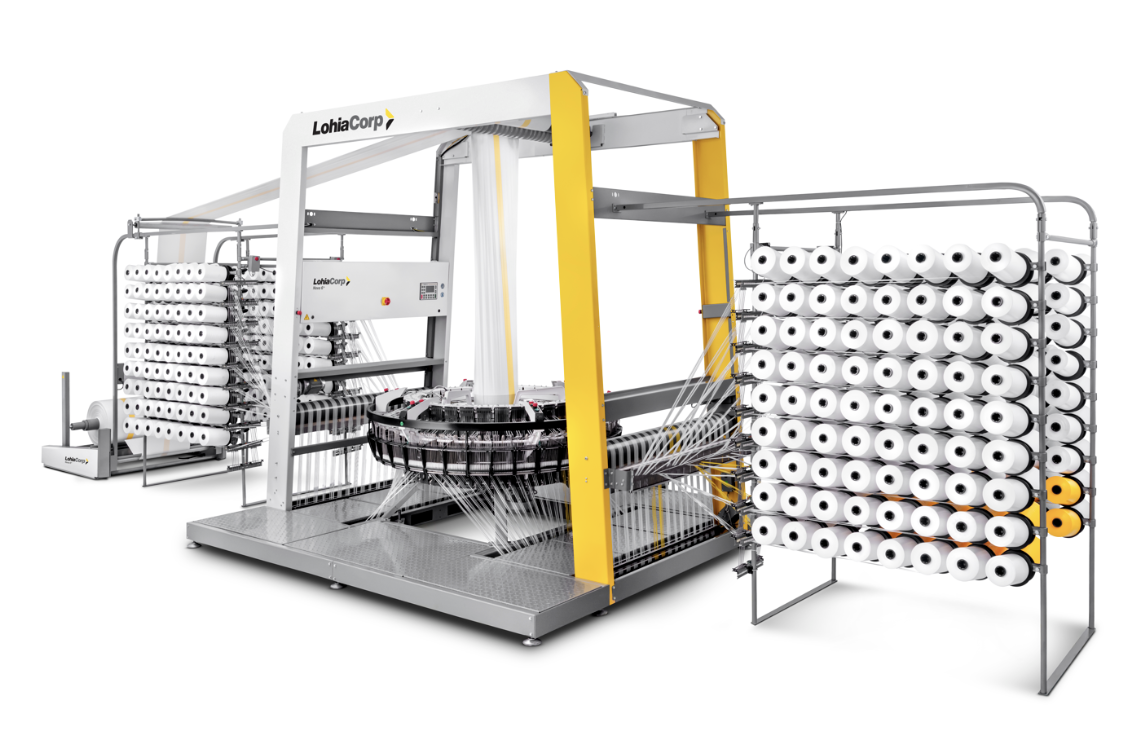

Nova 6+

Nova 6+ delivers excellent quality and productivity with a maximum weft insertion speed of up to 1150 picks per minute. Designed for high-performance output, it is ideal for producing lightweight fabrics used in packaging applications such as cement, fertilizers, polymer granules, chemicals, seeds, and animal feed.

Engineering precision weaving

Faster weft insertion. Greater throughput.

Light or medium—woven with unmatched precision

Precision-engineered optimized for reduced downtime

Smarter weaving. Faster output. Greater efficiency.

Specifications

Nova 6+
Working Width - Double Flat

30 to 85 cm
No. of Shuttles / Loom

6
Weft Insertion Rate (max.)

1150 ppm*
Warp / Weft Core Internal Diameter

35 mm**
Warp / Weft Core Length

218 mm**
Warp Bobbin Diameter (max.)

160 mm**
Weft Bobbin Diameter (max.)

110 mm
No. of Tapes

576 / 720
Fabric Roll Diameter (max.)

1500 mm
Dimensions (L X W X H)

For 576 tapes - 9.6 x 3.0 x 3.1 m
For 720 tapes - 10.2 x 3.0 x 3.1 m
Centre to Centre

2.3 m

* Actual processing speed depends upon reed version, fabric width, construction, tape specifications, quality of tapes and winding.
**Special versions on request.
Specifications are subject to change without prior notice, due to continuous developments. These are indicative and not binding.
Extreme values indicated are not achievable simultaneously.
The pictures may show optional equipments that are not a part of the standard supply.
For details, refer to the quotation.
