BCS Liner

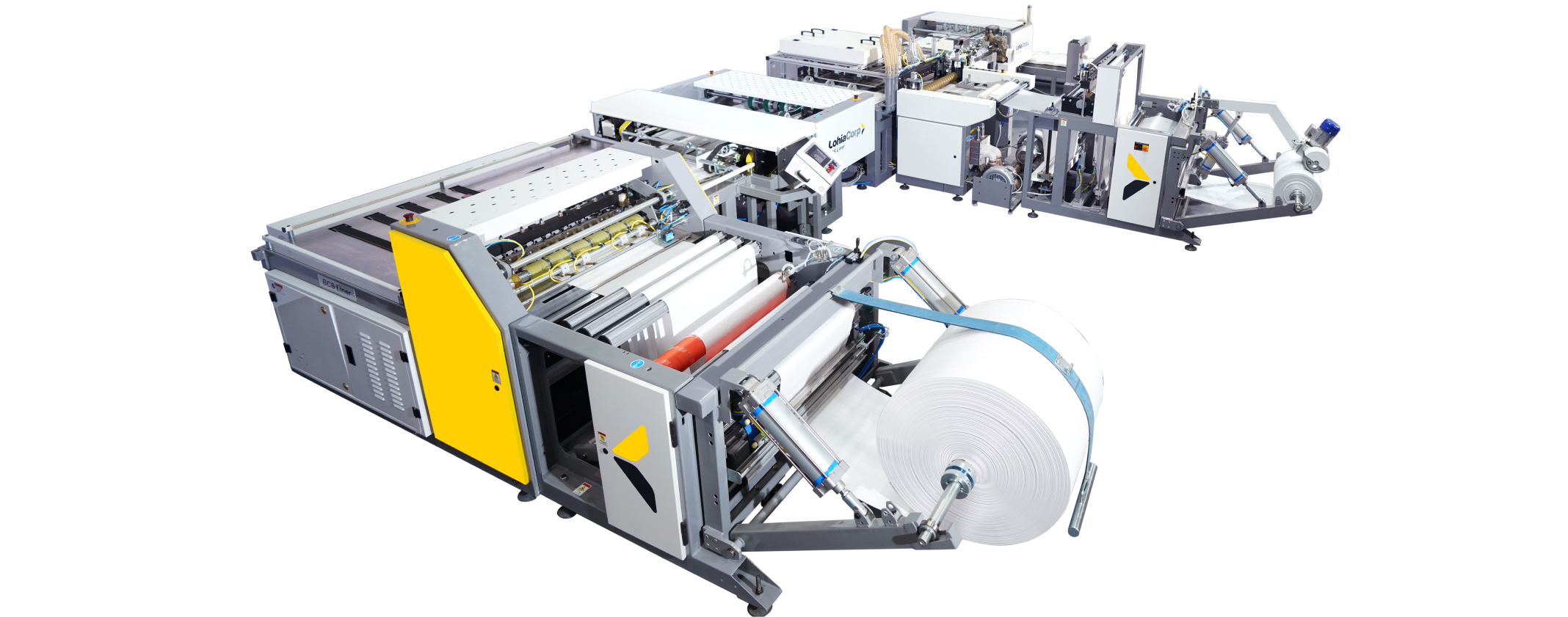

BCS-Liner automates and replaces the manual process of inserting liner in the woven bags. The machine uses PE/HDPE/LLDPE rolls which are cut at desired length, sealed and inserted in the woven bags. It is suitable for non-laminated fabric with an option for laminated fabric. These Liner bags are used in packaging of hygroscopic materials such as sugar, salt, chemicals & minerals.

Enhancing bag functionality with seamless inline liner insertion

Adding barrier for sensitive content requiring protection

Automated liner insertion for enhanced efficiency

Optimized material utilization with precision engineering

High-performance, low-maintenance operation

Revolutionizing liner-inside woven bag conversion

Specifications

BCS Liner
Width of unwinding fabric roll

300 - 750 mm for Liner insertion 400- 850 mm in BCS mode
Width of unwinding liner roll

350 - 800 mm
Diameter of fabric roll (max.)

1300 mm
Internal diameter of core

70-115 mm**
Replacement of fabric roll

Pneumatic System
Cutting length

600 - 1180 mm Liner insertion 550 - 1225 mm BCS mode
Cutting length (liner)

650 - 1295 mm
Cutting length accuracy

±1 mm for unprinted fabric
Bottom folding width

Double 25 mm (Option - 22 mm) Single 25-30 mm
Stitching type

Double Stitch
Range

4 - 9 mm for Bottom Stitch
Liner thickness

15-80 µ
Production speed

Upto 28 bags/min* for Liner insertion Upto 30 bags/min* in BCS mode
Dimensions (l x w x h)

7.73 x 4.88 x 1.50 m

*Depends on width, quality of fabric used including winding & PP multifilament stitching yarn etc.
**Other options on request.
***Depnds upon type/material of liner.
Cut length accuracy for printed fabric varies with deviation in cut mark.
Specifications are subject to change without prior notice due to continuous developments. These details are indicative and not binding. Extreme values indicated are not achievable simultaneously. The pictures may show optional equipments which are not a part of standard supply.
For details, refer to the quotation.
